Description

MPN: PT12X-4K-WH-G3 MSRP $1949.00

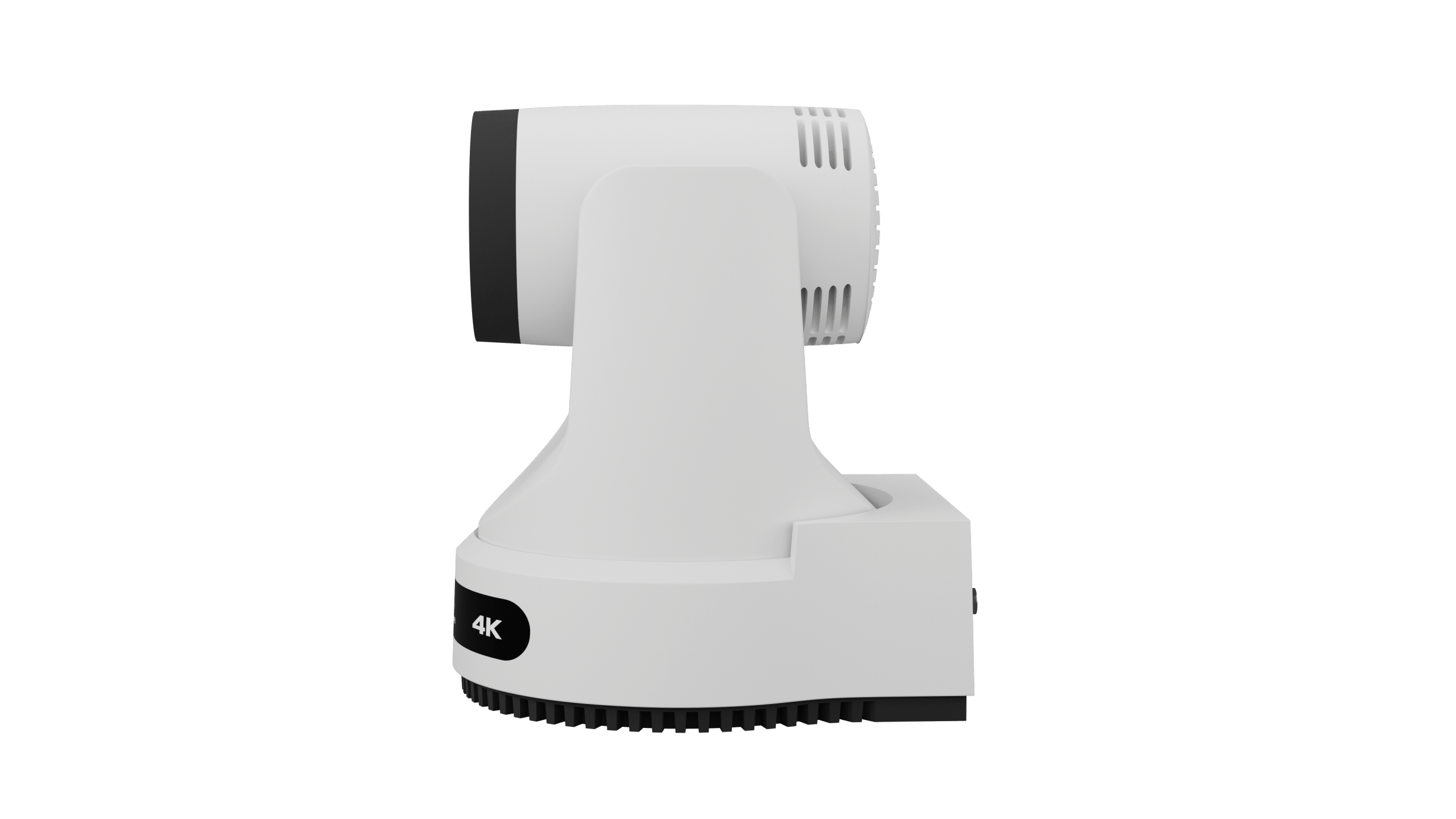

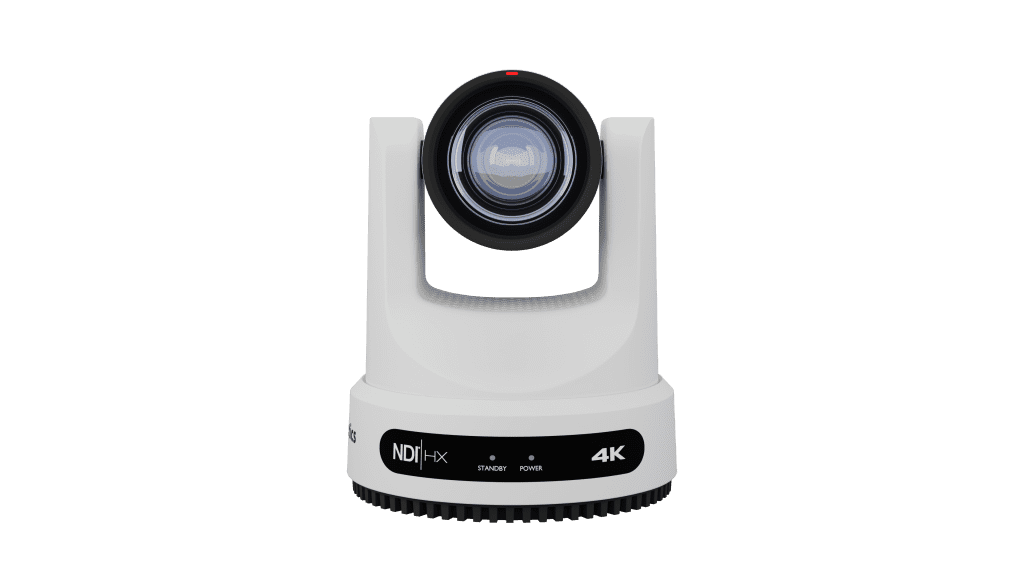

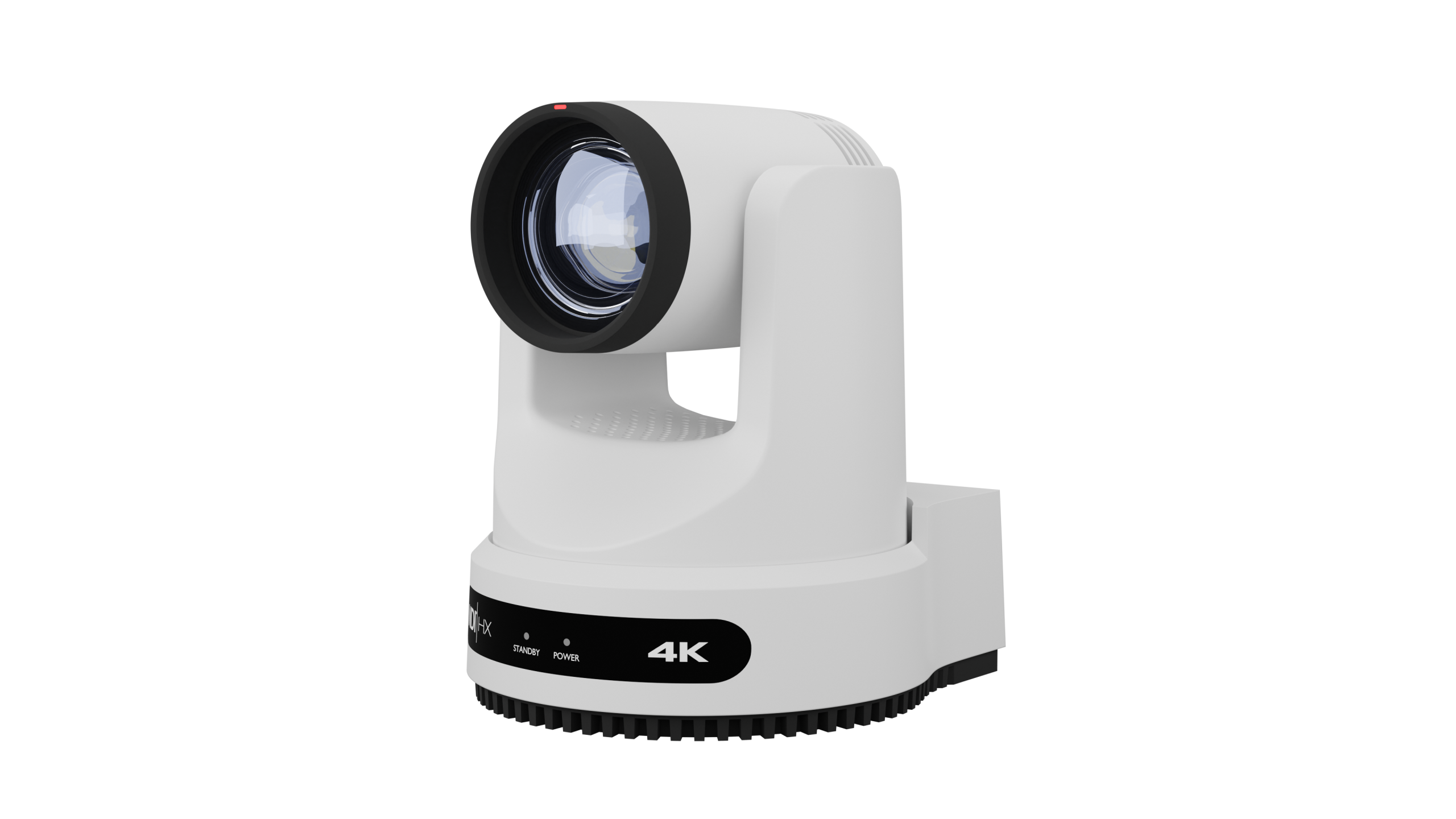

A New Standard for PTZ Cameras

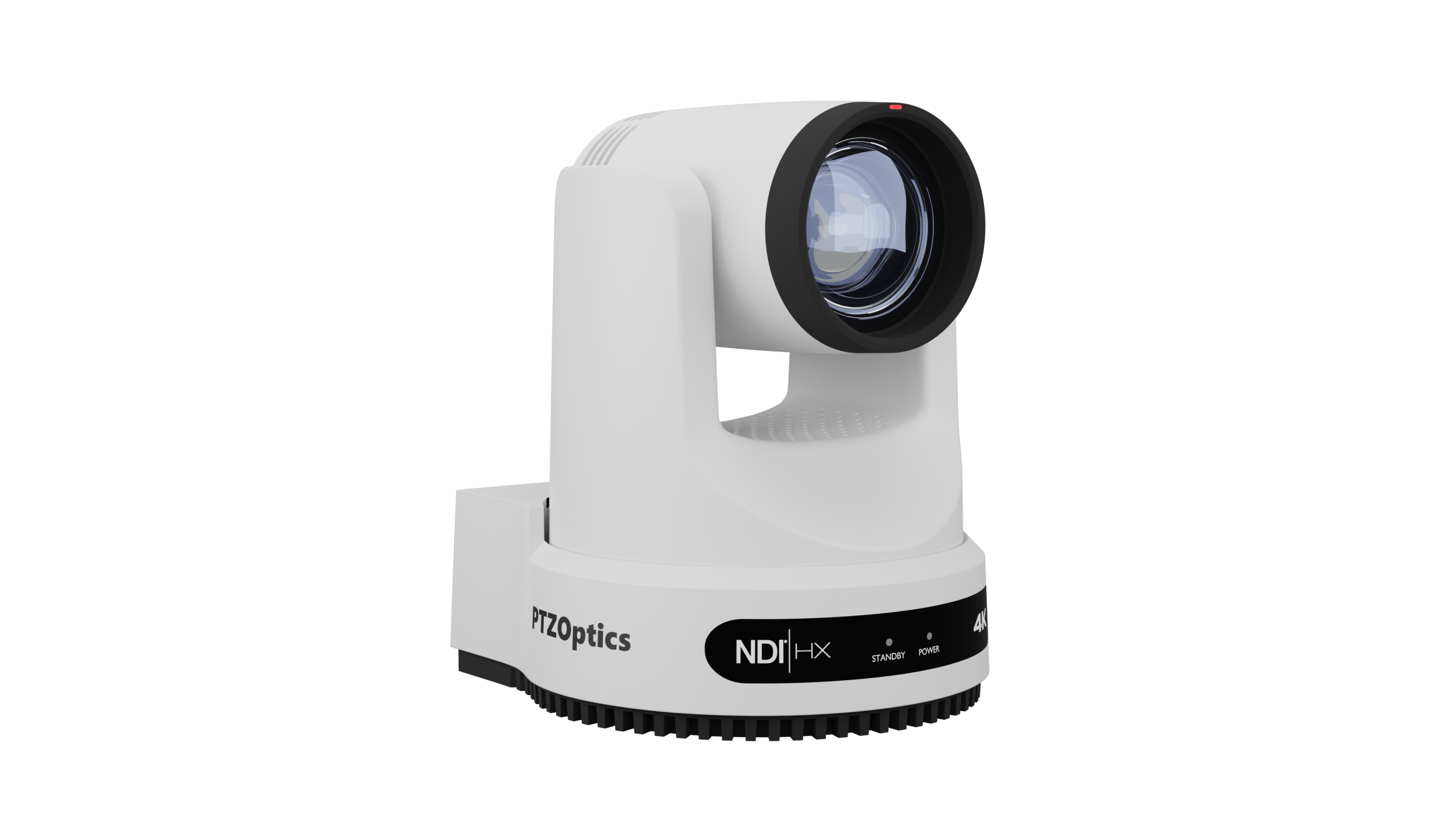

The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Designed with the Future in Mind

Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI®|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities — no need to run software on another computer — freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Discreet Mounting Options

Mount your PTZ Move camera above, below or beside the action to capture the ideal view every time. The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.

Pan, Tilt, Zoom, Track.

Control your production from behind the scenes – or right in front of them. In addition to the Move 4K’s auto-tracking features, users will also have access to our latest Web UI — updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Users can also take control of their PTZ cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Unrivaled Warranties

With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.

The Move 4K comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty.

Specifications

Image Sensor & Lens Optical Zoom

• 12x

Video Sensor and Frame Rate

• HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50,

1280x720p-60/59.94

• SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94

Digital Zoom

• Off (3840×2160), 2X (1920×1080), 3X (1280×720), 4X (960×540), 8X (480×270), 16X (256×144)

Field of View

• 12x: Horizontal: 9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
• 20x: Horizontal: 5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide) Min. Lux
• 5 Lux @ (F1.8, AGC ON)

Shutter

• 1/30s ~ 1/10000s Pan/Tilt Movement

Pan Speed

• 7° ~ 100°/s Tilt Movement
• +90° to -30 Tilt Speed
• 7° ~ 69.9°

Presets

• 255 Presets Video Tracking
• Supported

Image Flip, Mirror and Freeze

• Supported

Power Options Power Supply

• DC 12V / PoE+ (802.3at)

Input Power

• 18W (Max) Physical Specifications

Material

• Aluminum, Plastic Color
• White Dimensions (W x D x H)
• 57 W x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm

Weight

• 25 lbs (1.47 kg) Working Environment
• Indoor Operating Temperature
• 14°F ~ 104°F (-10°C to 40°C)

Storage Temperature

• -40°F ~ 140°F (-40°C to 60°C)

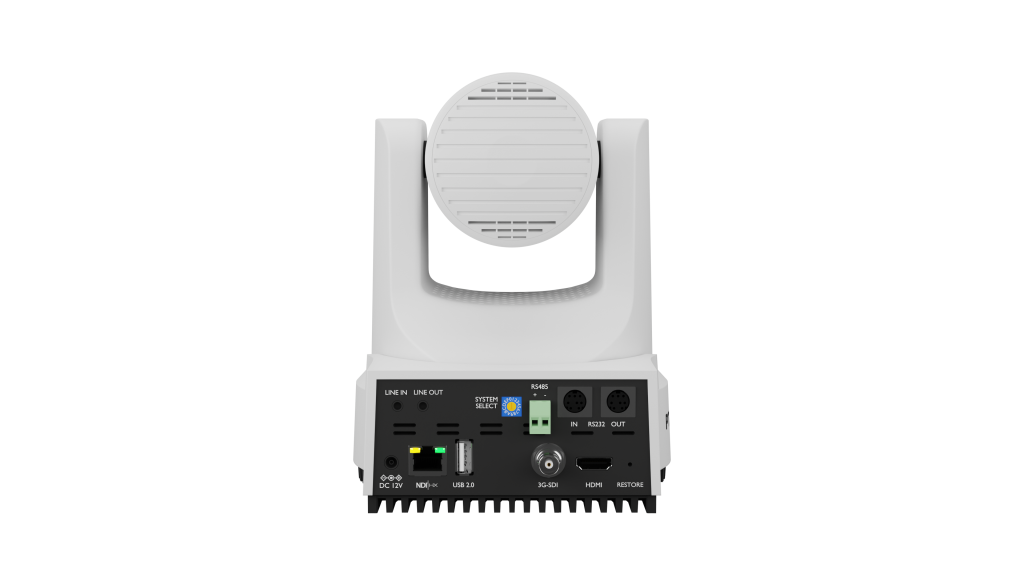

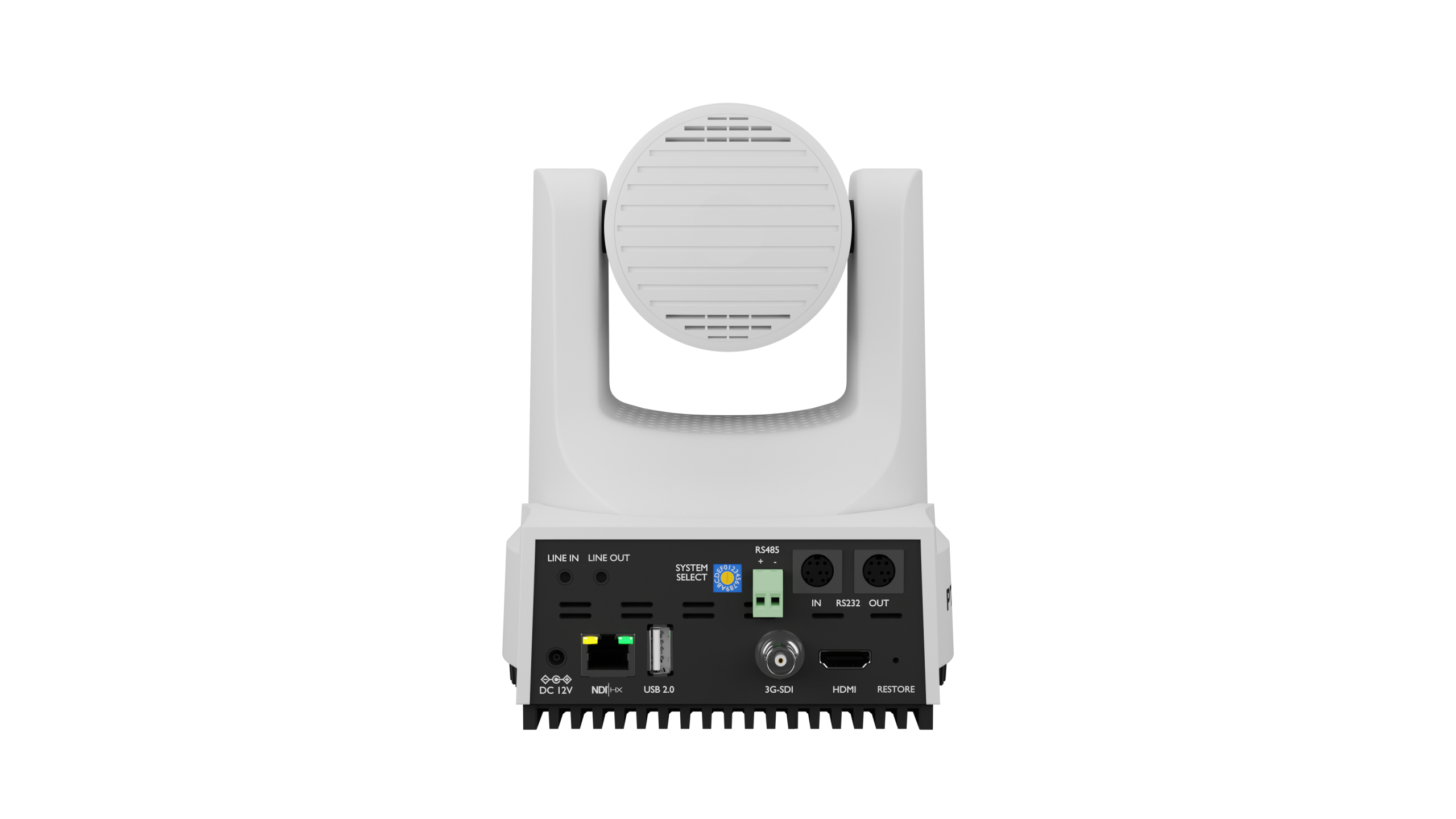

Rear Board Connectors HD Video Output

• 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
• 1x HDMI: version 0
• 1x USB 0: type A
• 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard Audio Interface
• 1x 5mm Line level Input Communication Interface
• 1x 8 pin Mini-din RS232 input, Max distance: 5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
• 1x 8 pin Mini-din RS232 output, Max distance 5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
• 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P

Network Interface

• RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE Power Jack
• JEITA type (DC IN 12V)
